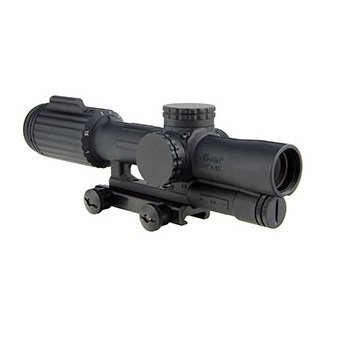

Trijicon VCOG 1-6X24 Red Horseshoe Dot .223 / 77 Grain Ballistic Matte Riflescope VC16C1600003
The Trijicon VCOG 1-6X24 VCOG Red Horseshoe Dot Crosshair .223 / 77 Grain Ballistic Matte Riflescope is a highly rugged, variable magnification riflescope designed for close quarter battle (CQB) and long distance marksmanship. With a forged aircraft-grade 7075-T6 aluminum housing, the VCOG� is nearly indestructible. Superior glass provides exceptional clarity and color with zero distortion. The universal segmented circle/MOA reticle is designed for multi-platform use, accommodating multiple calibers, ammunition weights, and barrel lengths. The first focal plane reticle allows subtensions and drops to remain true at any magnification, allowing the shooter to quickly and accurately apply the correct hold. With ruggedized electronics, the LED reticle is robust enough for any application. Powered by a lithium AA battery (provided), it has 6 user-selectable brightness settings. The green LED boasts a battery life of 1,400 hours at setting 4 (constant on); the red LED has a 700 hour battery life. An integrated dial fin allows easy rotation through the magnification range, and a constant eye relief means no head or stock position adjustments are needed. Waterproof to 20 meters (66 ft.).
Features of the Trijicon VCOG 1-6X24 VCOG Red Horseshot Dot Crosshair .223 / 77 Grain Ballistic Matte Riflescope
- Thumbscrew Mount (TA51)
- Lithium AA Battery
- LENSPEN (TA56)
- Trijicon Logo Sticker (PR15)
- Manual
- Warranty
Product Specifications for the Trijicon VCOG 1-6X24 VCOG Red Horseshot Dot Crosshair .223 / 77 Grain Ballistic Matte RiflescopeMagnification: 1-6x
- Objective Size (mm): 24mm
- Bullet Drop Compensator: Yes
- Weight (oz): 23.2 (w/o mount or battery)
- Illumination Source: LED
- Reticle Pattern: Horseshot Dot / Crosshair .223 / 77 Grain Ballistic
- Day Reticle Color: Red
- Night Reticle Color: Red
- Bindon Aiming Concept: Yes
- Eye Relief (in): 4 in. Constant
- Exit Pupil (mm): 0.41-0.15 in.
- Field of View (Degrees): 18.0-3.0
- Field of View @ 100 yards (ft): 95-15.9
- Adjustment @ 100 yards (clicks/in): 1 click @ 100m = 1/4 MOA
- Mount Comes With: TA51
- Housing Material: Forged Aluminum
- Batteries: 1 AA Lithium or Alkaline Battery
- Battery Life: Red LED 700 hrs continuous use at brightness setting 4 or 6
- Dimensions: 10.05 x 2.51 x 2.73 in.
- Focal Plane: First
- Adjustment Range: Elevation: 90 MOA total travel; Windage: 90 MOA total travel; Per Revolution: 20 MOA
