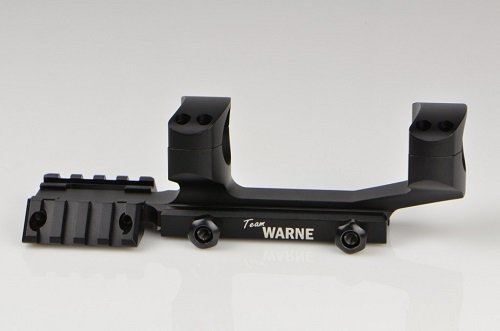

Warne Team RAMP 1" Ultra High Black Mount - RAMP1TW
The
Warne Team RAMP 1" Ultra High Black Mount is a cantilever style scope mounting platform that allows proper scope installation on the popular AR-15 rifle. By design, the AR platform was intended for fixed iron sights and did not offer an acceptable mounting surface for optics. As the weapon system evolved from the military designate M16A1 to the M16A3 and M4, Picatinny mounting systems became standard equipment, however, the rail system found on the A3 and M4 weapon systems still did not allow a variable power optic to be mounted far enough forward with conventional scope mounts. The Warne RAMP modular mounting system positions the front ring forward of the upper receiver by 1 3/4" allowing the optics to be mounted farther forward allowing the shooter to position their head in the proper position whether upright or prone and not sacrifice their shooting position due to improper optic positioning. The Warne RAMP also offers unique 45 degree mounting rails on one or both sides of the optic. The primary sight can be as small as a 1-4 or as large as an 8.5-25 or larger variable power optic.
Features of the Warne Team RAMP 1" Ultra High Black Mount
- CNC machined aluminum construction.
- #8 Torx style fasteners with steel threaded inserts.
- Cantilever design for proper optics mounting.
- Places your optic at the Ideal Height for AR and similar platforms.
- Up to 2 integrated mounting rails (with the option to remove one or both) for optimal sighting or light systems.
- 1/2" tactical nut attachment, 65 in/lb. of torque is recommended.
Product Specifications for the Warne Team RAMP 1" Ultra High Black Mount
- Ring Diameter (in): 1.00
- Height (in): 0.935
- Weight (oz): 9.5
- Fits Objective Size (mm): MSR Ideal Height
